Product Overview
The FT-VSM Multi series provides premium replacement shale shaker screens specifically engineered for NOV Brandt Multi-Sizer shakers. Designed to meet rigorous API RP13C standards, these screens ensure optimal solids control and fluid recovery in the most demanding drilling environments, effectively separating cuttings from drilling mud with high precision.
Constructed from high-grade Stainless Steel (304/316/316L) and supported by a robust Q235 steel frame, these screens offer exceptional mechanical strength and corrosion resistance. With available XR and XL series options, they provide versatile conductance numbers and separation microns to adapt to varying geological formations and fluid densities.
Detailed Parameters
| Model No. | FT-VSM Multi | Material | Stainless Steel 304/316/316L |
|---|---|---|---|
| Frame Material | Q235 Steel | Compliance Standard | API RP13C |
| API Designation | API 20 – API 325 | Available Series | XR, XL Optional |
| Warranty Period | 1 Year | Estimated Working Life | 240 – 360 Hours |
| Application | NOV Brandt Multi-Sizer | Design Focus | High Conductance & Durability |
Key Advantages
Premium Material
Utilizing SS316L and Q235 steel for maximum resistance against abrasion and chemical corrosion in harsh drilling fluids.
Extended Service Life
Optimized weave and frame construction provide a reliable working life of 240 to 360 hours, reducing downtime.
API Standardized
Fully compliant with API RP13C, ensuring consistent separation performance and perfect fit for Brandt equipment.
Precision Separation
Wide range of API designations (20-325) allowing precise control over the micron separation for varied mud weights.
High Conductance
Engineered to maximize fluid throughput while minimizing solids carry-over, improving overall rig efficiency.
Flexible Options
Available in both XR and XL series to match the specific operational requirements of your solids control system.

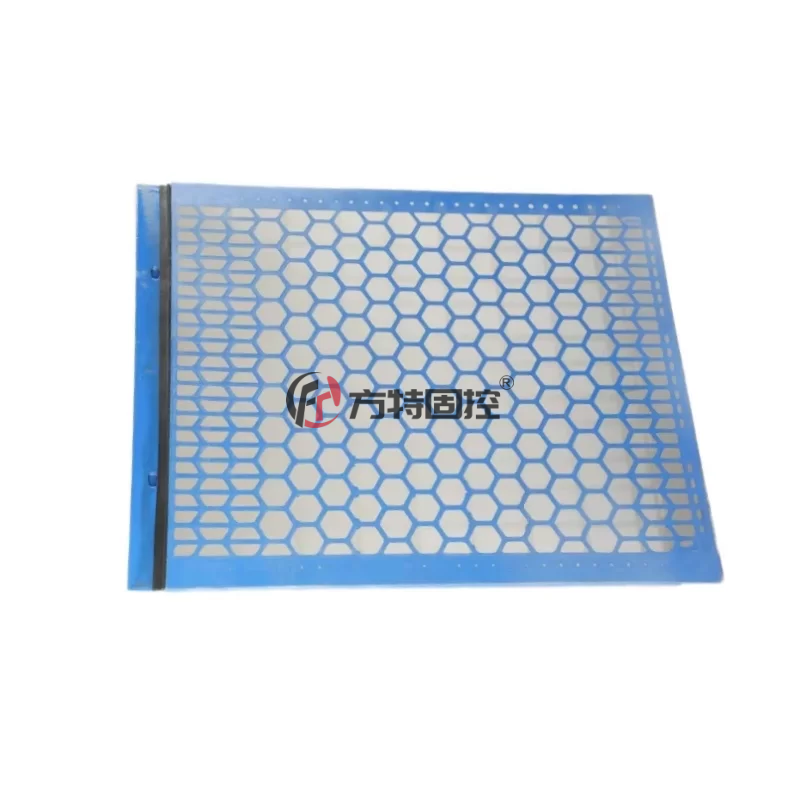

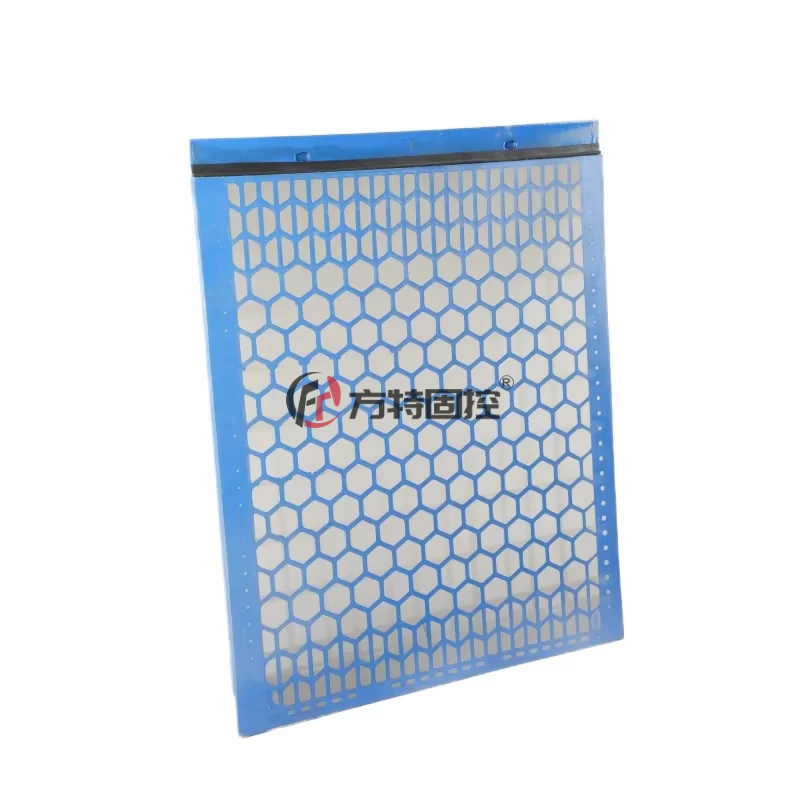

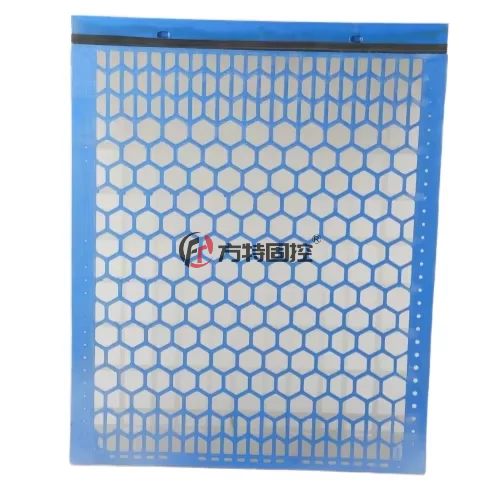

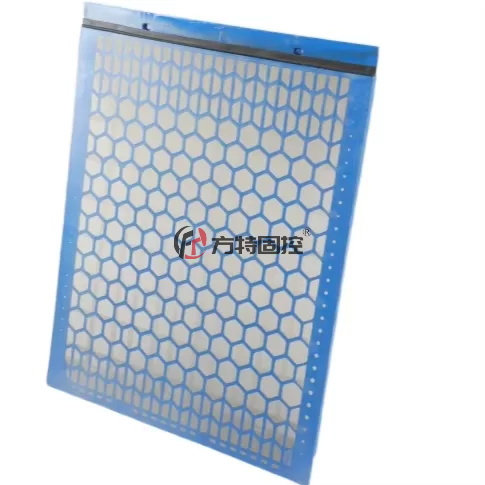

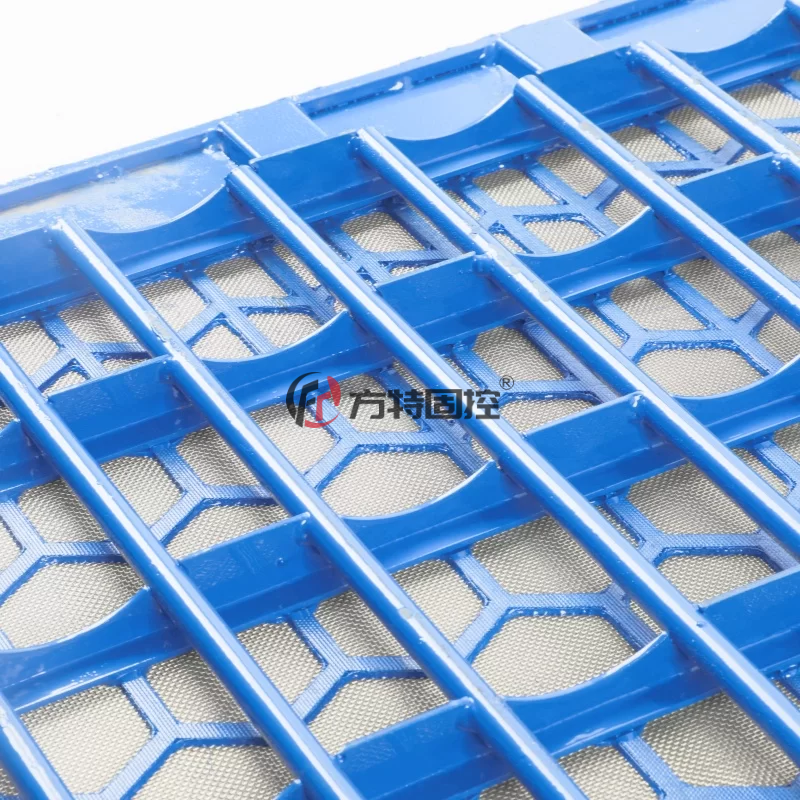

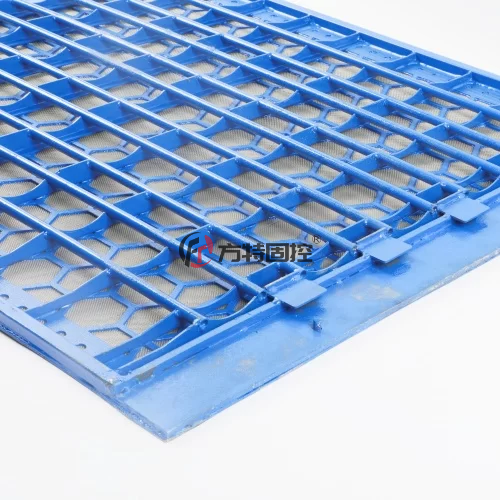

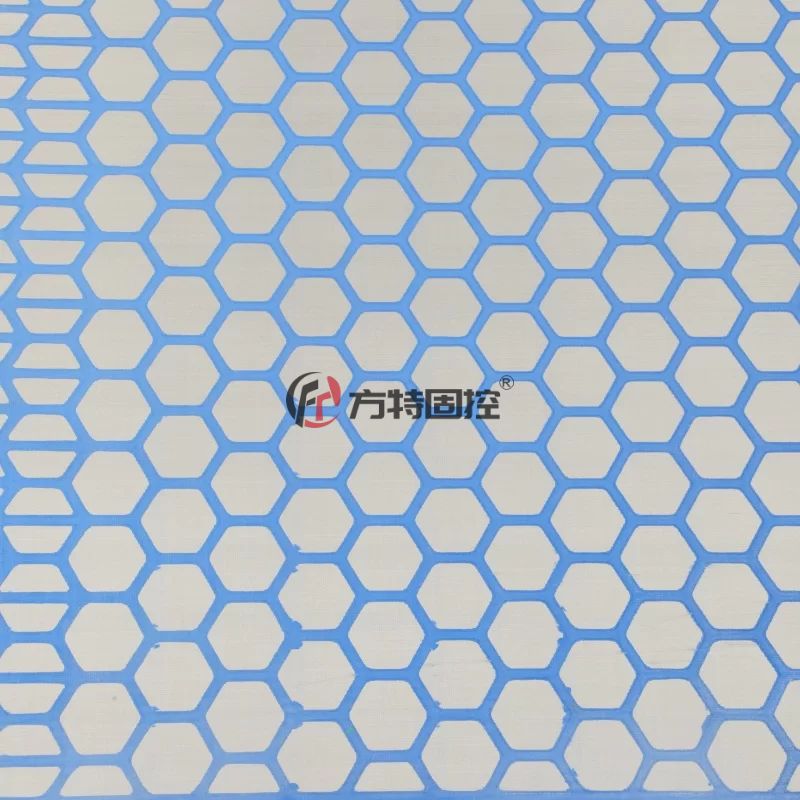

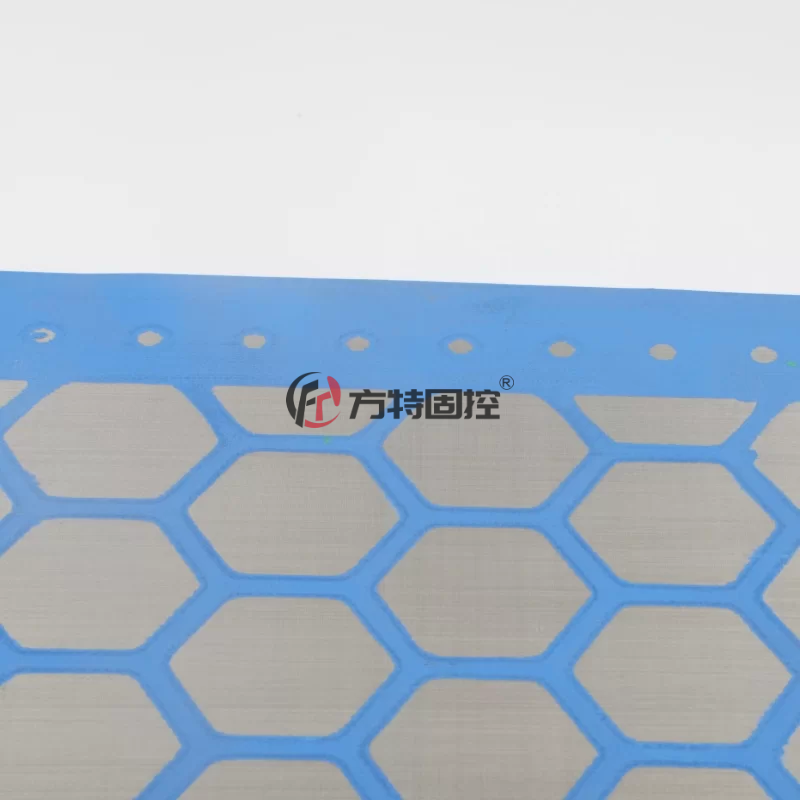

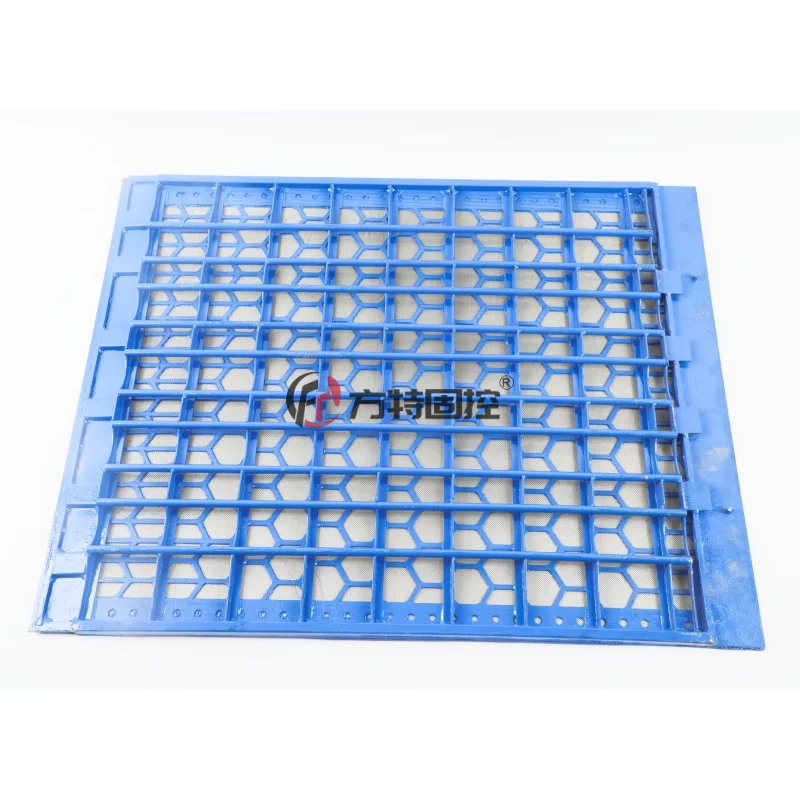

Product Gallery
Management Platforms
Inventory Control
Streamlined supply chain management ensuring a steady stock of all API sizes for rapid deployment.
Technical Support
Expert guidance on selecting the correct mesh type (XR/XL) based on your drilling fluid properties.
Quality Assurance
Rigorous testing protocols to verify conductance numbers and separation accuracy before shipping.
Rapid Delivery
Optimized logistics network to minimize rig downtime by delivering screens to remote sites quickly.
Customization
Capability to manufacture customized mesh specifications for specialized drilling requirements.
Life-cycle Tracking
Helping operators track screen wear and schedule replacements to maintain peak shale shaker performance.
Investment Return Comparison
| Performance Metric | Standard Screens | FT-VSM Premium Screens |
|---|---|---|
| Average Lifespan | 150-200 Hours | 240-360 Hours |
| Fluid Loss Rate | Moderate | Low (High Recovery) |
| Replacement Frequency | High | Low |
| Installation Fit | Variable | Precision (API Standard) |
| Total Cost of Ownership | High (Due to downtime) | Low (Optimized longevity) |
Frequently Asked Questions
The XR and XL series differ in their mesh construction and conductance capabilities. XL screens are typically designed for higher flow rates, while XR offers specialized separation characteristics. Selection depends on your specific fluid volume and desired cut point.
Yes, they are engineered as direct replacements. Following API RP13C standards ensures that they fit seamlessly into the Multi-Sizer frame without requiring modifications.
The API designation (e.g., API 100, API 200) refers to the mesh size. A higher number indicates a finer mesh for removing smaller particles. You should choose based on the required mud weight and the size of the solids you need to remove.
We use high-grade Stainless Steel 304, 316, or 316L. 316L is particularly effective in environments with high chloride content or aggressive chemical additives in the drilling mud.
Depending on the abrasiveness of the formations and the fluid properties, the expected working life ranges between 240 and 360 hours of active operation.
Yes, all FT-VSM Multi screens come with a standard 1-year warranty covering manufacturing defects, ensuring your investment is protected.
